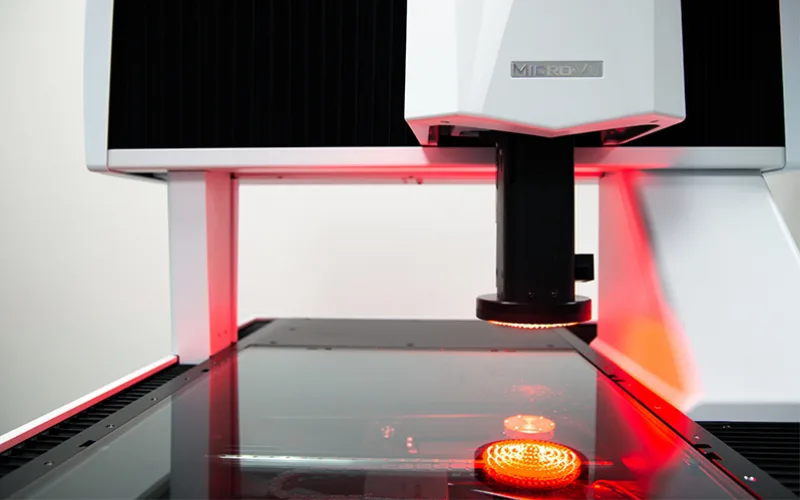

The Excel Measuring Centres are high precision measurement solutions for large parts. Complete with InSpec Metrology Software, programmable zoom lens, and servo motion control, the Excel machines measure parts up to 2.5 meters
The Excel Multisensor Measuring Centers employ new technologies to provide high speed and accuracy on reliable and affordable measurement systems.
In addition to Vision capabilities, an Excel offers Touch Probe and Laser measurement capabilities. Touch Probe capabilities improve 3D measurement capabilities. Laser capabilities improve speed for scanning and Z height measurements.
With the multisensor capabilities, advanced digital and optic zoom, proprietary edge detection, and InSpec Metrology Software, the Excel Measuring Centers can handle demanding measurement applications.
The gantry style system accomodates large parts and fixtures of multiple parts while maintaining a relatively small footprint. The Excel series of machines measures parts up to 2.5 meters long and up to 100kg in weight.
| Model | Measurement Capacity | XY Accuracy | Linear Resolution | Stage Capacity |
|---|---|---|---|---|
| Excel 511 | 420 x 520 x 160 mm | 2.7+L/200 | 0.05 µm | 100 kg |
| Excel 512 | 420 x 520 x 250 mm | 3.0+L/200 | 0.05 µm | 100 kg |
| Excel 701 | 660 x 700 x 160 mm | 3.0+L/200 | 0.05 µm | 100 kg |
| Excel 702 | 660 x 700 x 250 mm | 3.2+L/200 | 0.05 µm | 100 kg |
| Excel 704 | 660 x 700 x 400 mm | 3.8+L/200 | 0.05 µm | 100 kg |
| Excel 901 | 750 x 900 x 160 mm | 3.7+L/200 | 0.05 µm | 100 kg |
| Excel 902 | 750 x 900 x 250 mm | 4.0+L/200 | 0.05 µm | 100 kg |
| Excel 904 | 750 x 900 x 400 mm | 4.6+L/200 | 0.05 µm | 100 kg |
| Excel 1301 | 1050 x 1300 x 160 mm | 3.7+L/200 | 0.05 µm | 100 kg |
| Excel 1302 | 1050 x 1300 x 250 mm | 4.0+L/200 | 0.05 µm | 100 kg |
| Excel 1304 | 1050 x 1300 x 400 mm | 4.6+L/200 | 0.05 µm | 100 kg |
| Excel 1701 | 1250 x 1700 x 160 mm | 3.7+L/200 | 0.05 µm | 100 kg |
| Excel 1702 | 1250 x 1700 x 250 mm | 4.0+L/200 | 0.05 µm | 100 kg |
| Excel 1704 | 1250 x 1700 x 400 mm | 4.6+L/200 | 0.05 µm | 100 kg |
| Excel 2500 | 1600 x 2520 x 160 mm | 4.9+L/200 | 0.05 µm | 100 kg |
