INSPEC

InSpec

InSpec introduces a totally new generation of InSpec Metrology Software. Built natively using modern frameworks and cutting-edge research, InSpec will complement Micro-Vu's innovation in metrology.

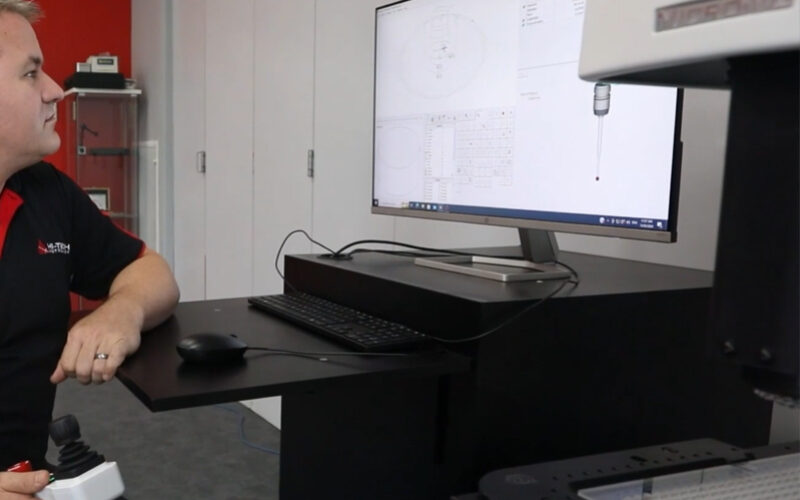

Micro-Vu InSpec Metrology Software is a powerful and intuitive control for the measuring system. Backed by over a decade of development, InSpec includes advanced illumination calibration, on-screen stage controls, and centrally located icons to improve workflow productivity.

CAD Import

  • Import vertices, edges, and surfaces as InSpec features with intelligent geometry merging support
  • Quickly navigate the machine and sensors to regions of interest on the CAD model
  • Automatically place vision tools with configurable extraction strategies
  • Visualize touch probe approaches and extraction strategies

New and Improved UI

  • Retain the familiar programming workflow of InSpec Classic
  • Put tolerancing and evaluation results front-and-center
  • Customizable 3D Schematic annotations with machine visualization
  • Full undo/redo support

All-New Geometric Dimensioning and Tolerancing Support

  • Natively 3D evaluations with support for 2D and mixed 2D/3D workflows
  • Automatic fitting of datum reference frames, including underconstrained DRFs
  • Cutting-edge implementations of association criteria for feature fitting
  • Modern GD&T/GPS support, including true profile evaluation with unequal disposition, composite tolerances, and simultaneous requirement evaluation
  • Automatic program analysis to ensure properly-constrained results

Simulate machines and sensors offline at no extra cost

  • Take simulated measurements from a CAD model or imported snapshot
  • Review and make modifications to programs written online
